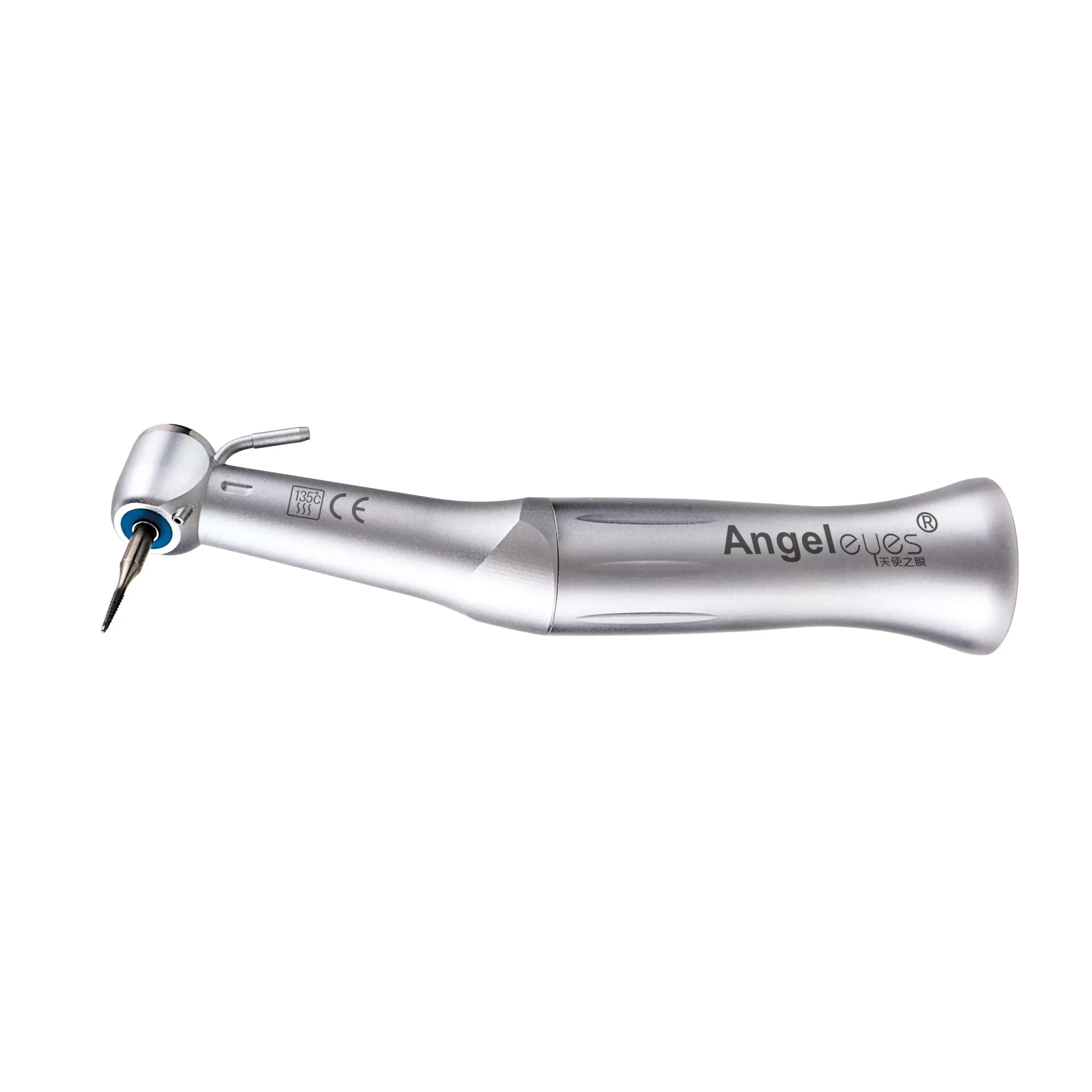

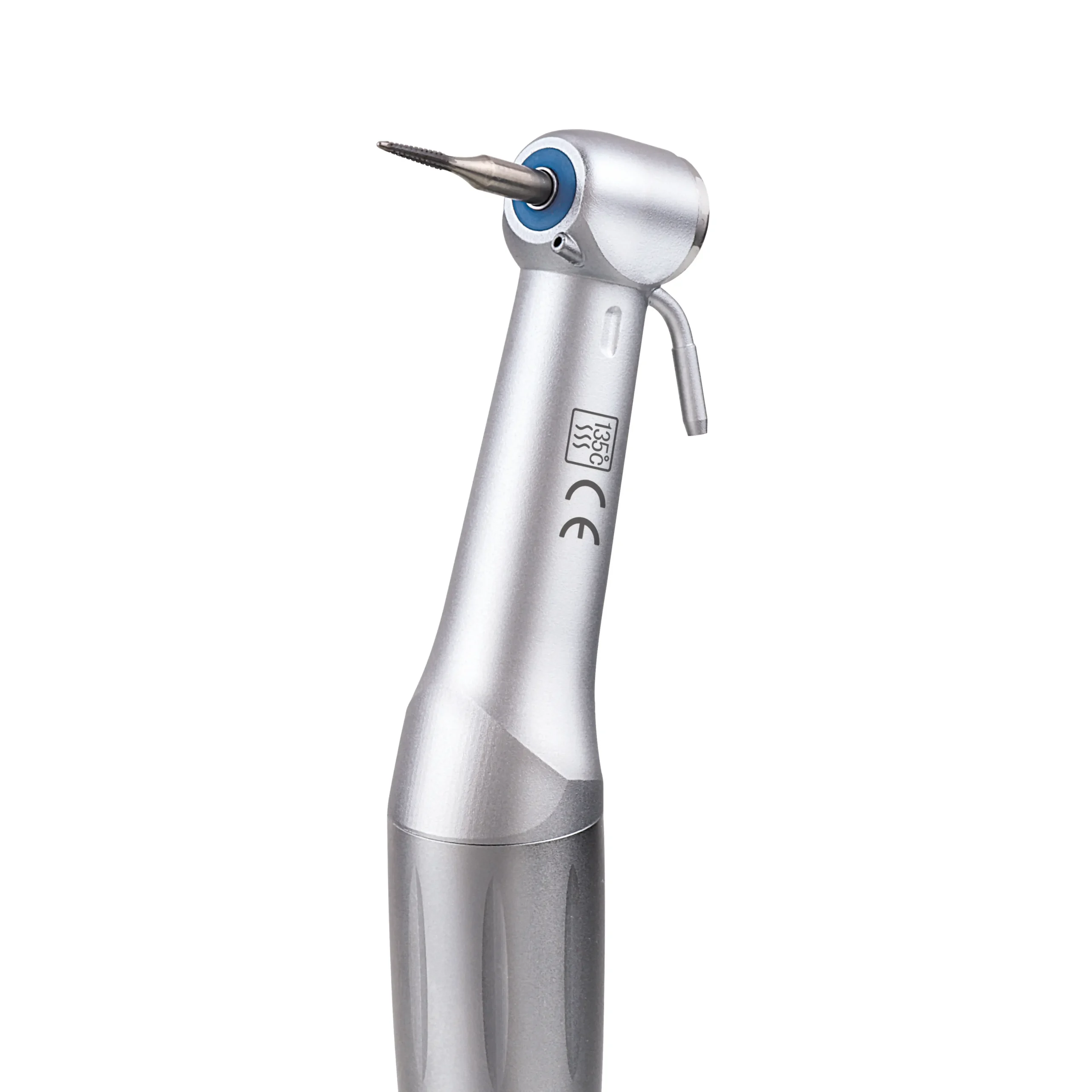

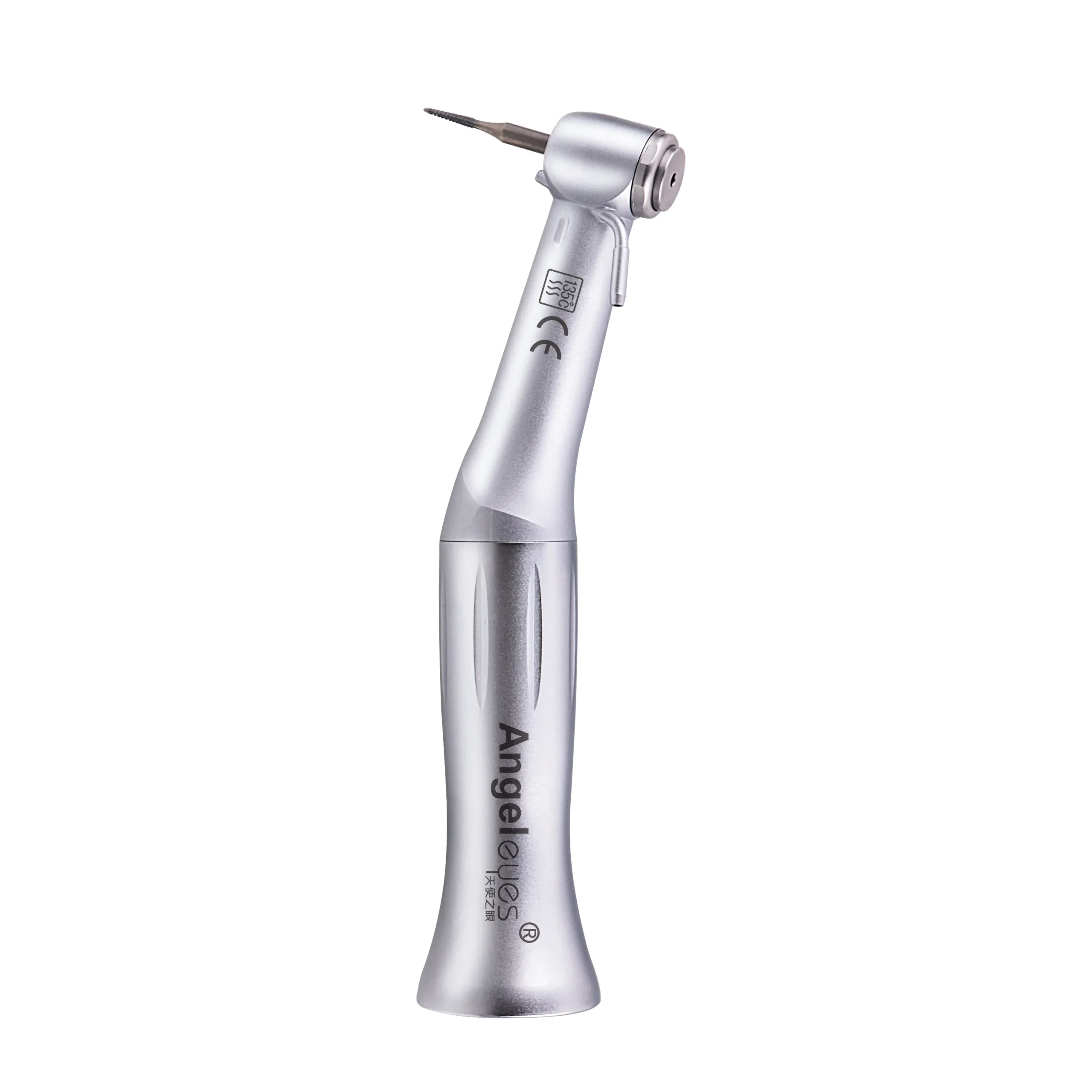

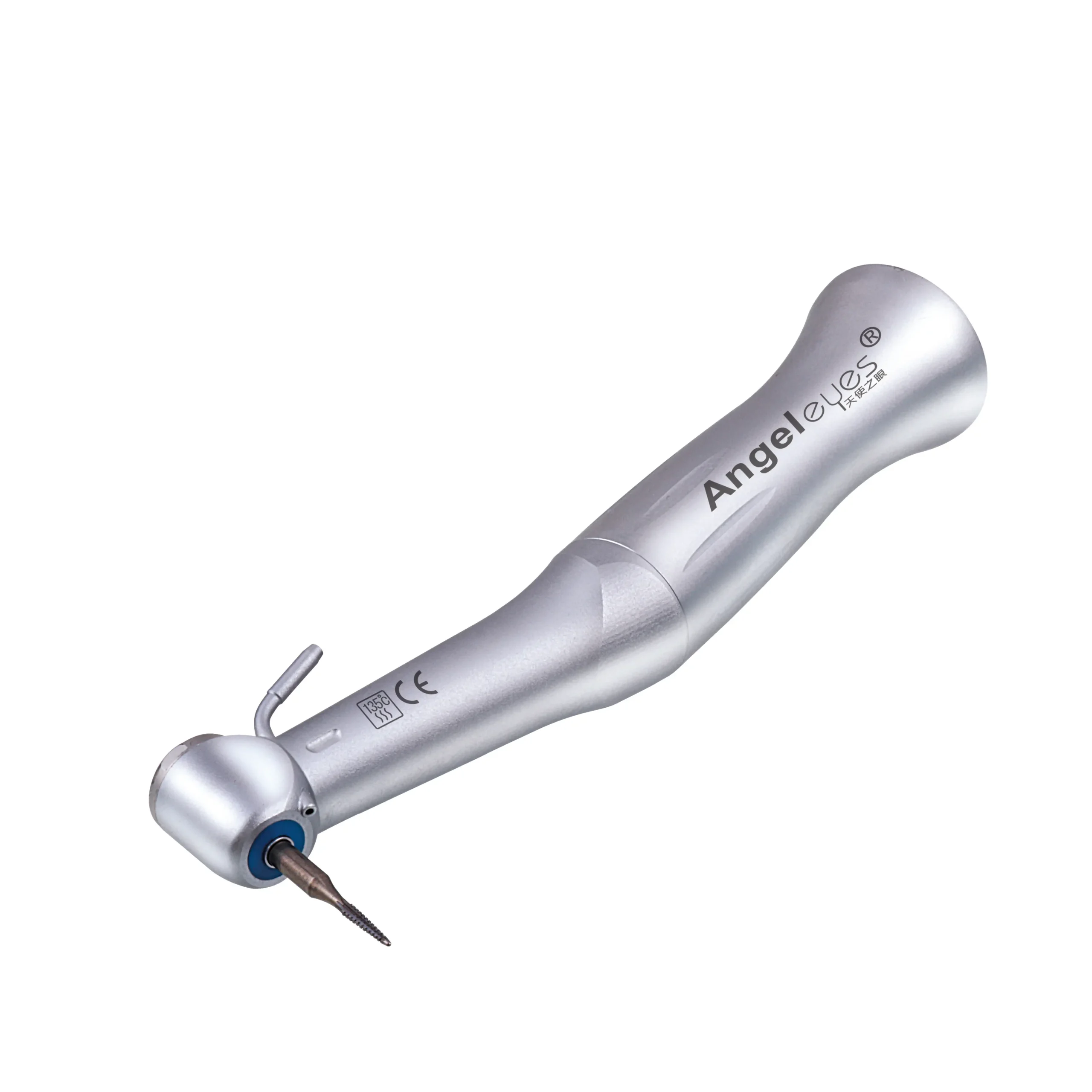

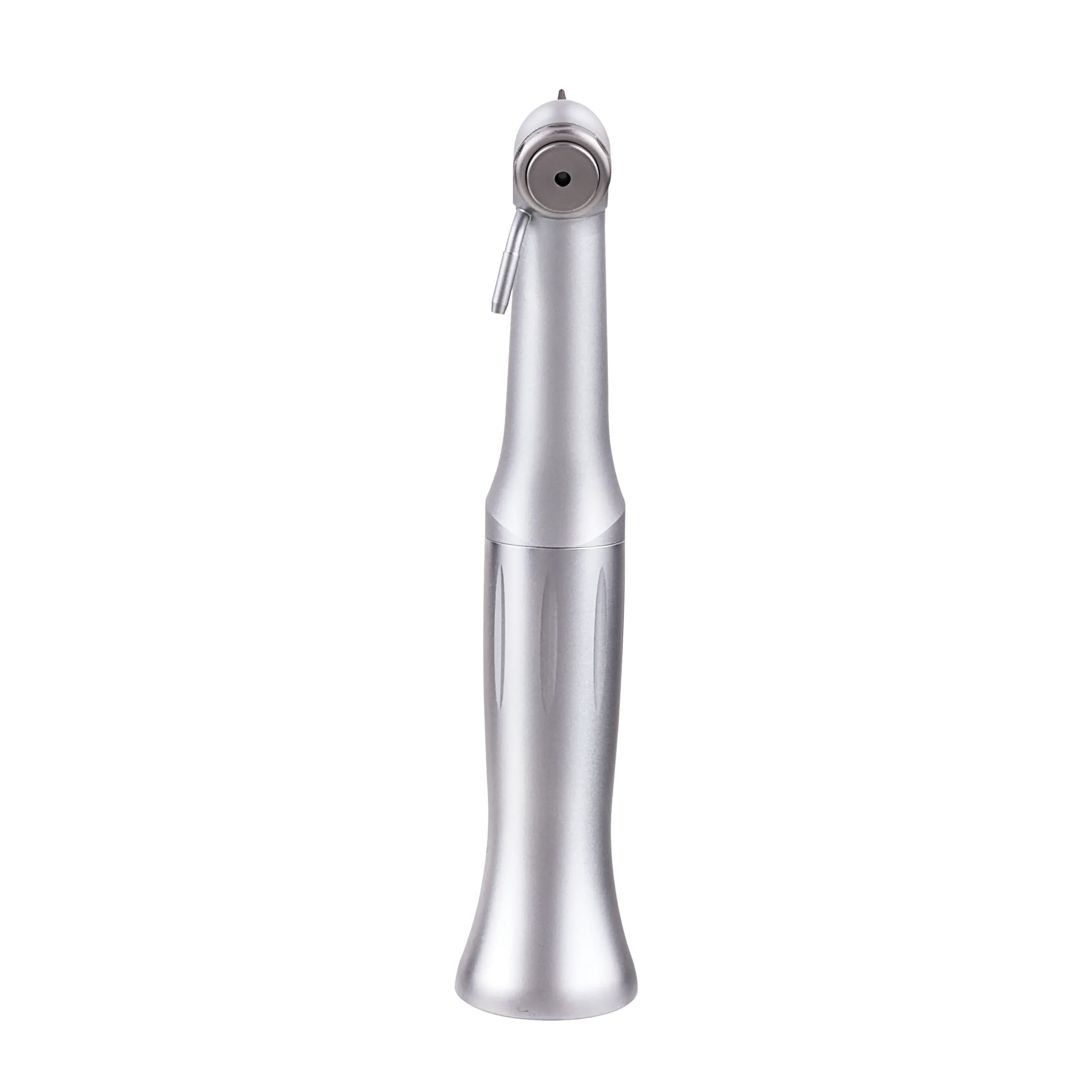

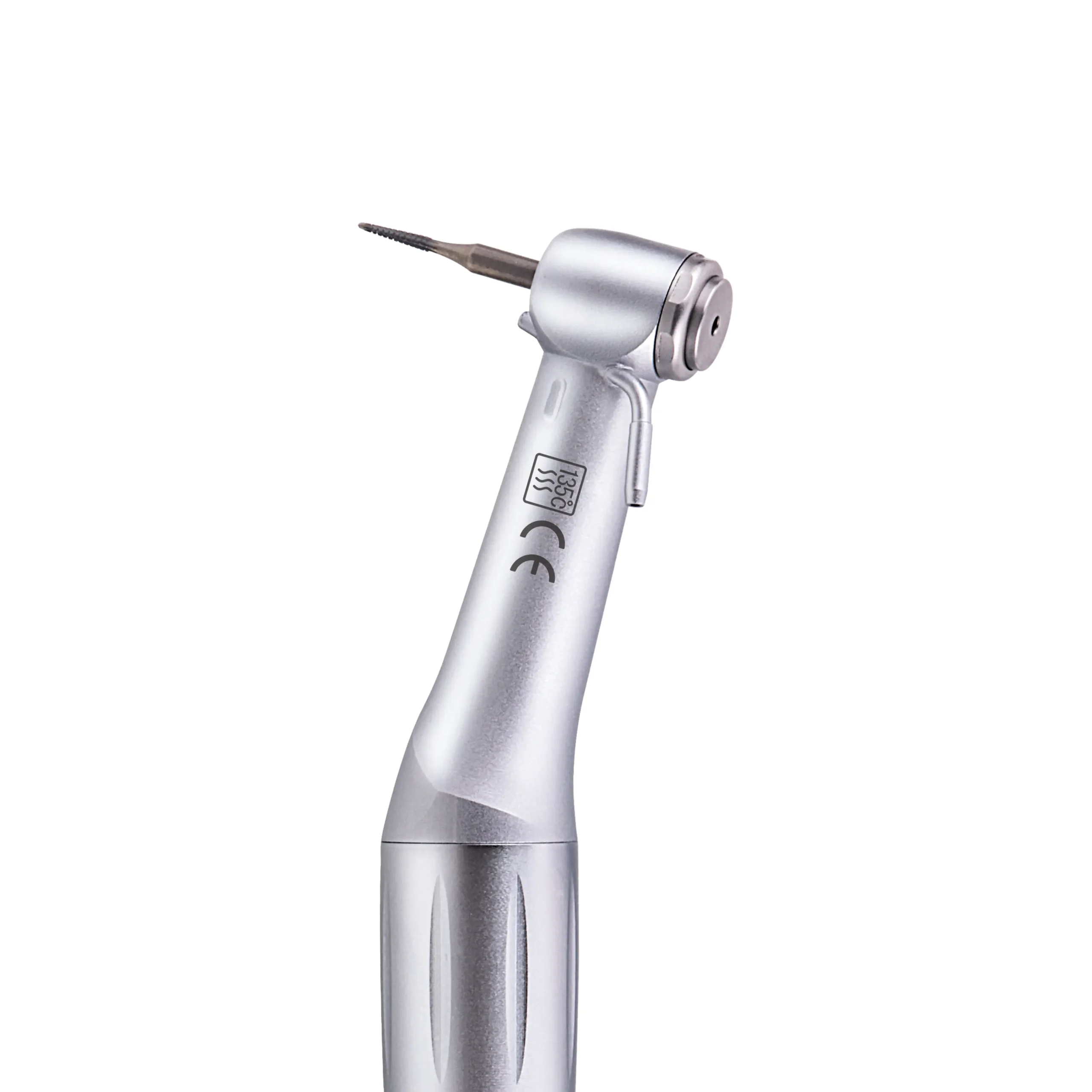

20:1 Implant Contra angle handpiece
No LED
Model: G20
Connector: ISO Stanard E type
Specification
| Rotating Speed | 0–3,000 rpm |
| Power Source | Turbine, Electricity |
| Chuck Type | Push Button |
| Interface Type | E-Type |
Features
Up to 70 Ncm Torque / 3000rpm Speed/ E-Type Connection
Overview
The 20:1 LED Implant Contra Angle Handpiece is designed for implant procedures requiring controlled low-speed operation and high torque. It features a 20:1 gear ratio, up to 70 Ncm torque, a push-button chuck,<70dB Noise,135°C high temperature Disinfection and a standard E-type connection.
Technical Datasheet
| Parameter | Specification |
|---|---|
| Product Name | 20:1 Contra Angle Handpiece |
| Gear Ratio | 20:1 |
| Air Pressure | 0.3–0.35 MPa |
| Maximum Torque | 70 N·cm |
| Applicable Burs | 2.335–2.355 mm |
| Rotating Speed | 0–3,000 rpm |
| Power Source | Turbine, Electricity |
| Chuck Type | Push Button |
| Interface Type | E-Type |
FAQ
1. What is the gear ratio of this contra angle handpiece?
The handpiece features a 20:1 reduction gear ratio.
2. What is the maximum torque?
The maximum torque is 70 Ncm.
3. What is the rotating speed range?
The rotating speed range is 0–3,000 rpm.
4. What bur size is compatible with this handpiece?
It is suitable for burs with a diameter of 2.335–2.355 mm.
5. What type of chuck does it use?
It uses a push-button chuck for convenient bur replacement.
6. What type of connection does it use?
The handpiece uses a standard E-type interface.
7. Do you test the products before delivery?
Yes, we are strict at the quality of products.All your products (100 percent) will be tested before packing.
