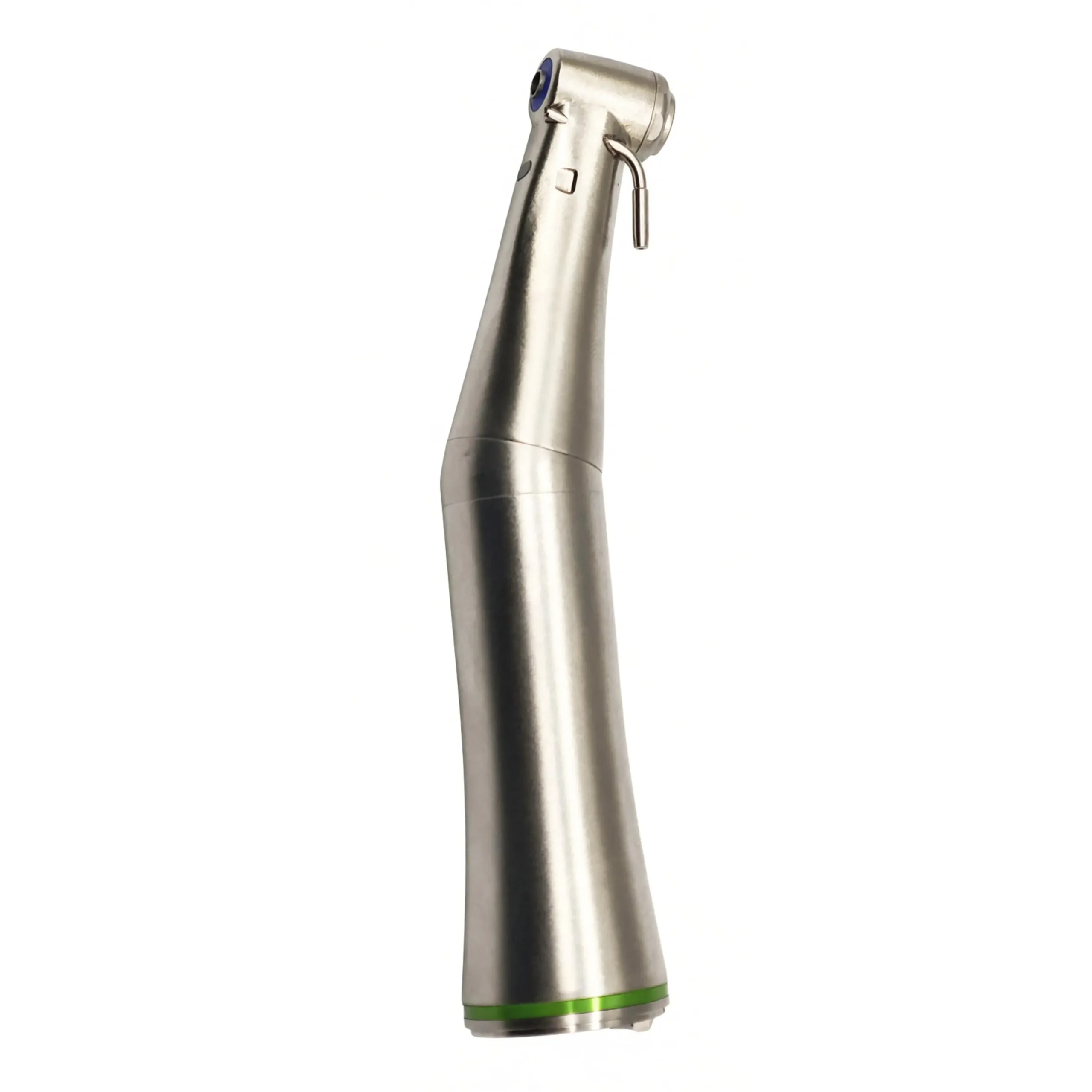

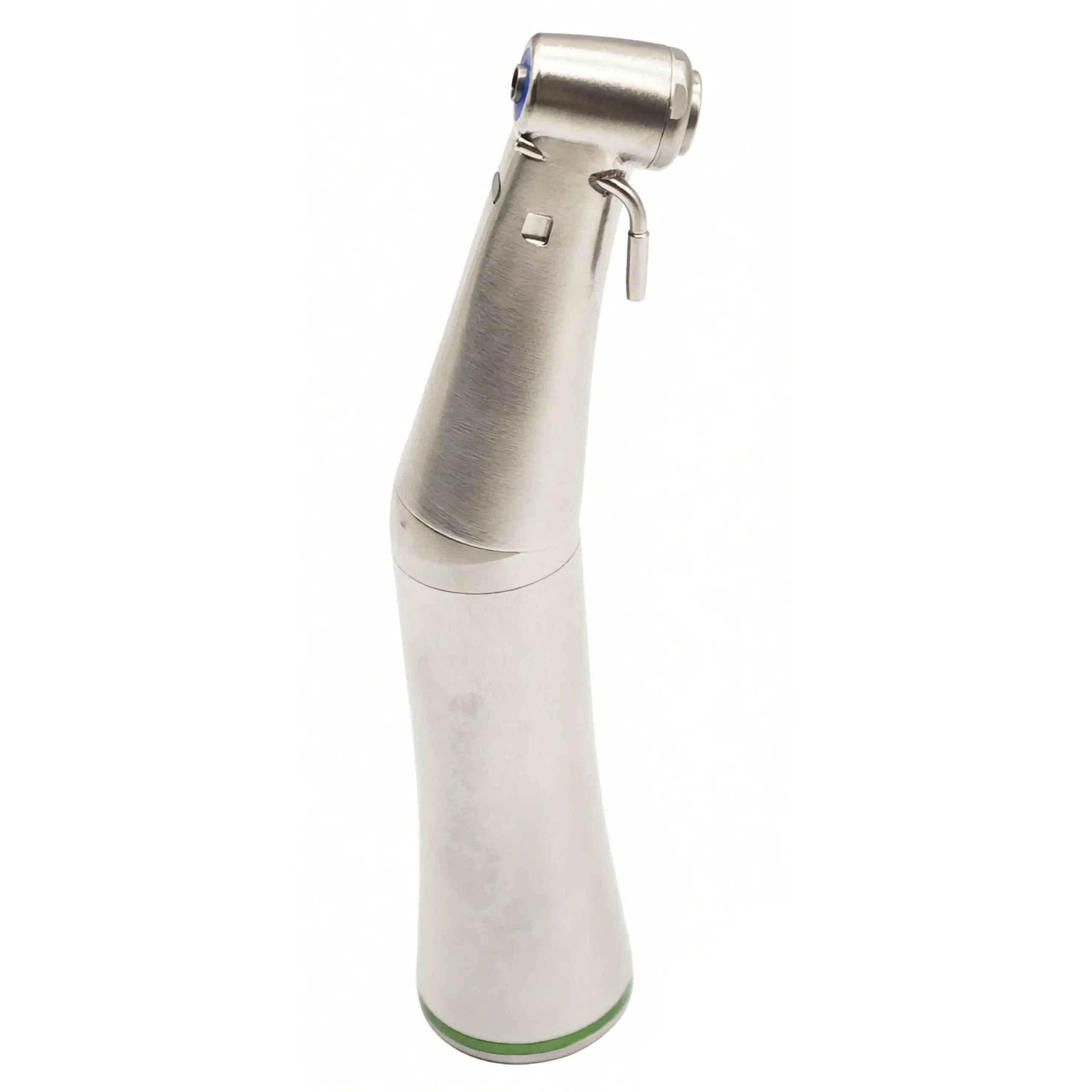

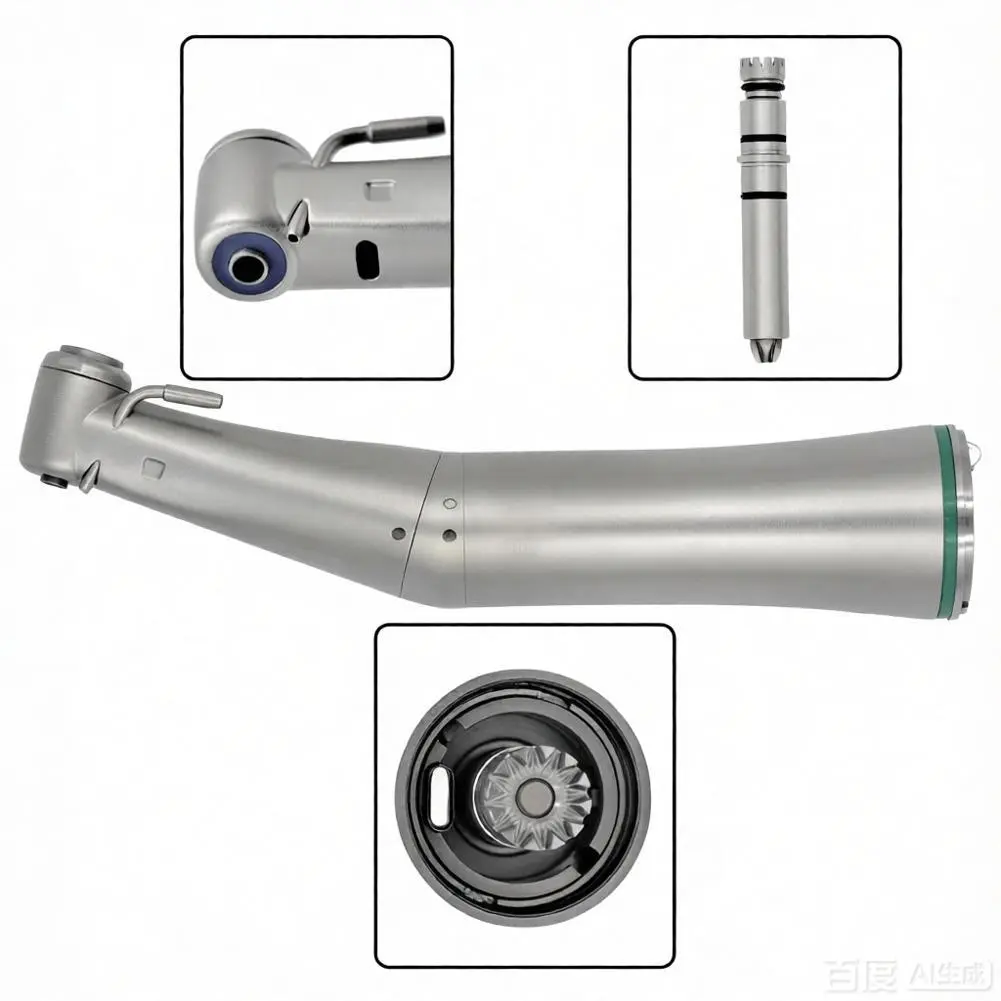

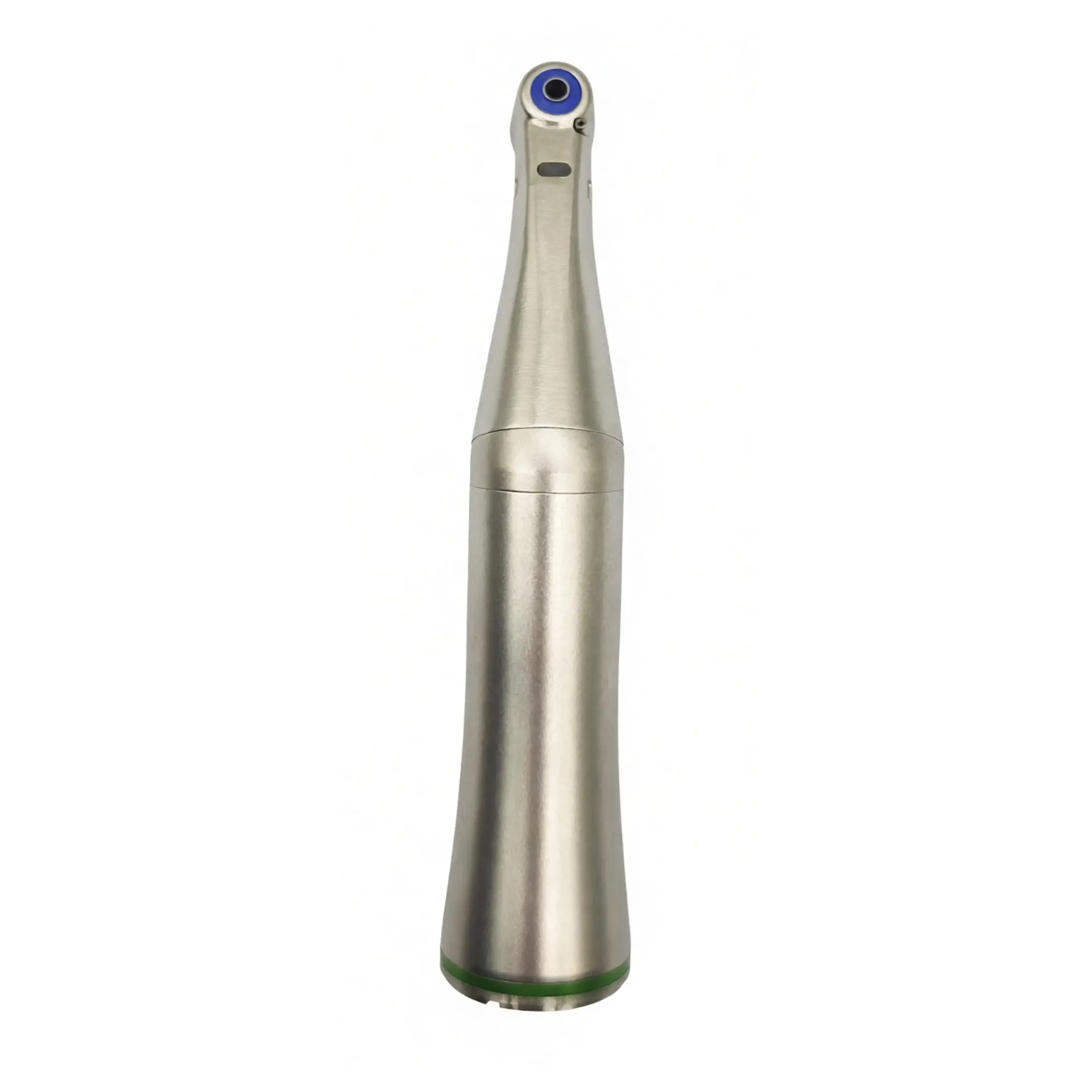

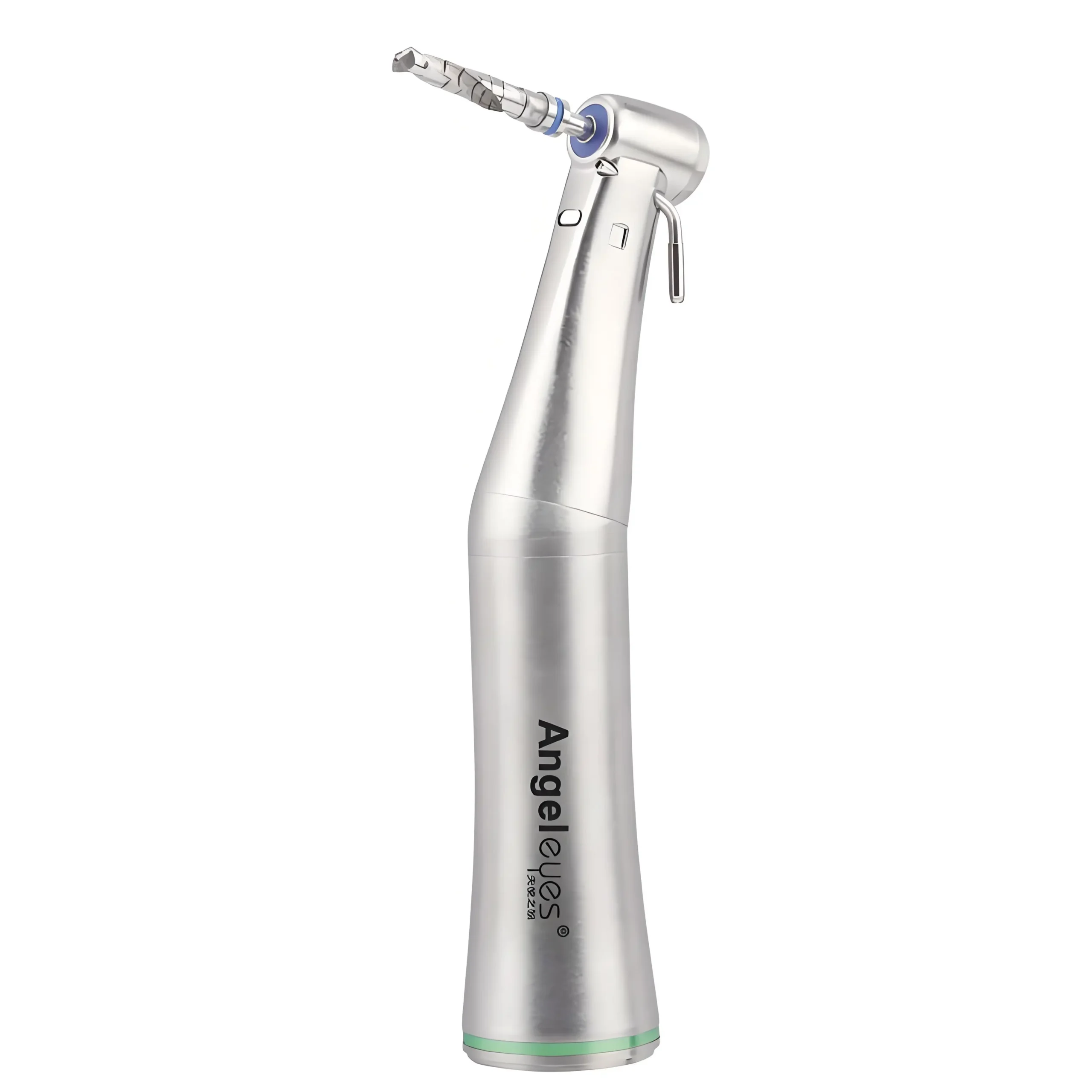

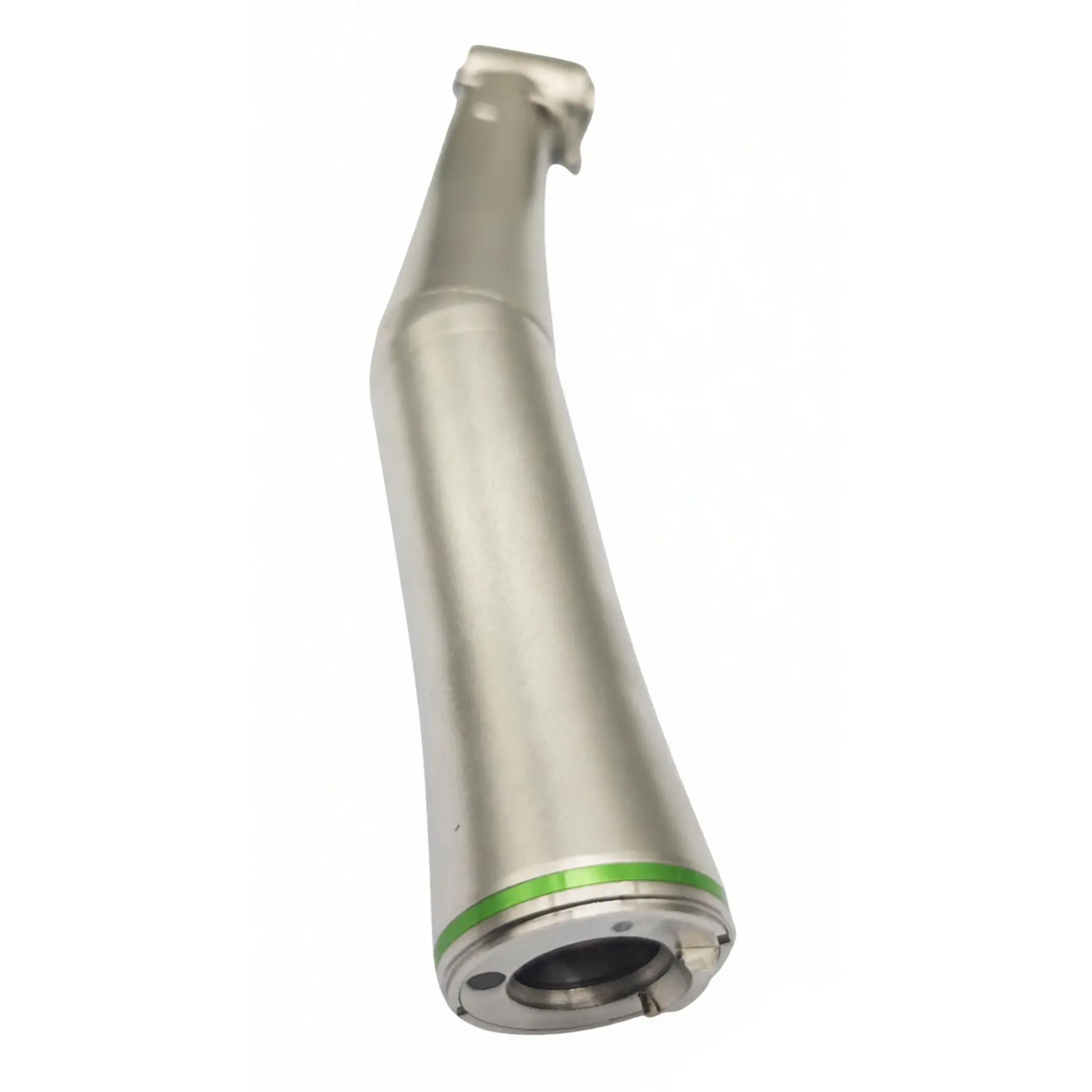

20:1 LED Implant Contra angle handpiece
Optic light
Model: G21
Connector: ISO Stanard E type
Specification
| Product Name | Implant surgical handpiece |
| Gear Ratio | 20:01 |
| Chuck Type | Push Button |
| Power Source | Turbine, Electricity |
| Interface Type | E Type |
Features
Up to 70 Ncm Torque / Built-in LED Light/ E-Type Connection
Overview
The 20:1 LED Implant Contra Angle Handpiece is designed for implant procedures requiring controlled low-speed operation and high torque. It features a 20:1 gear ratio, LED illumination, up to 70 Ncm torque, a push-button chuck, and a standard E-type connection.
Technical Datasheet
| Specification | Details |
| Product Name | 20:1 Contra Angle Handpiece |
| Gear Ratio | 20:01 |
| Lamp | LED Light |
| Max Torque | 70 Ncm |
| Applicable Burs | 2.335–2.355 mm |
| Rotating Speed | 0–3,000 rpm |
| Power Source | Turbine, Electricity |
| Chuck Type | Push Button |
| Interface Type | E Type |
FAQ
1. What is the gear ratio of this contra angle handpiece?
The handpiece features a 20:1 reduction gear ratio.
2. What is the maximum torque?
The maximum torque is 70 Ncm.
3. What is the rotating speed range?
The rotating speed range is 0–3,000 rpm.
4. Does this contra angle have an LED light?
Yes. It is equipped with an LED light to improve visibility during operation.
5. What bur size is compatible with this handpiece?
It is suitable for burs with a diameter of 2.335–2.355 mm.
6. What type of chuck does it use?
It uses a push-button chuck for convenient bur replacement.
7. What type of connection does it use?
The handpiece uses a standard E-type interface.
