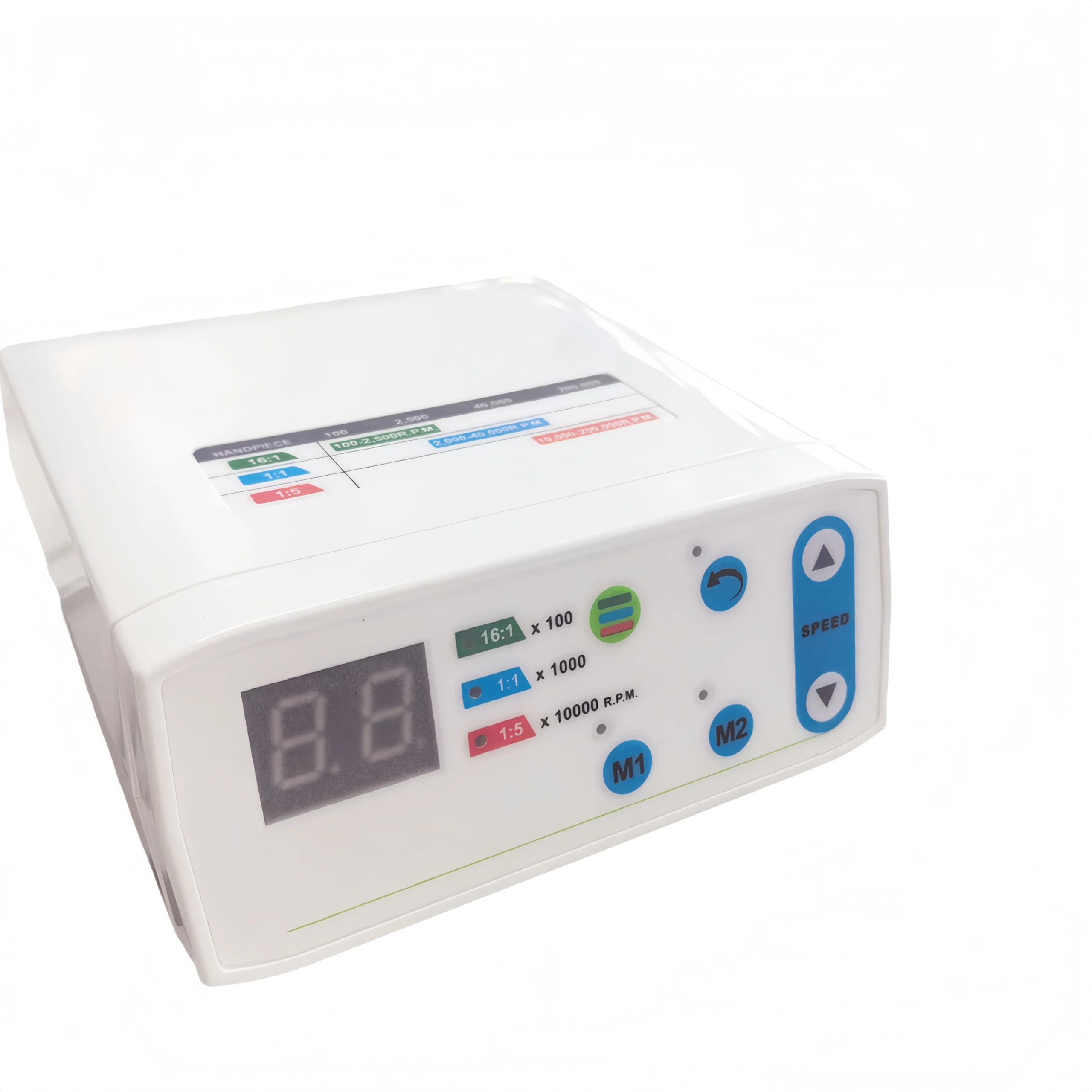

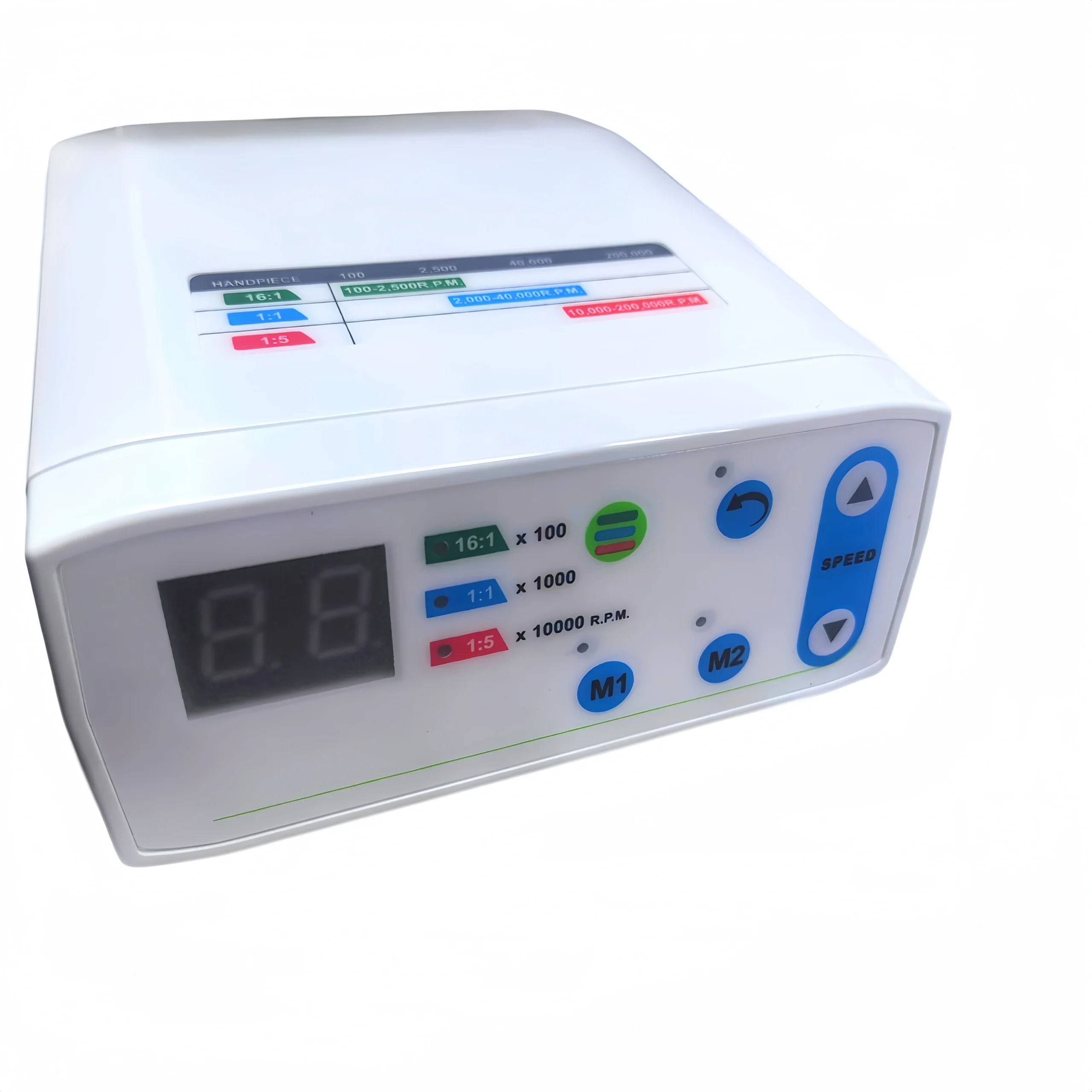

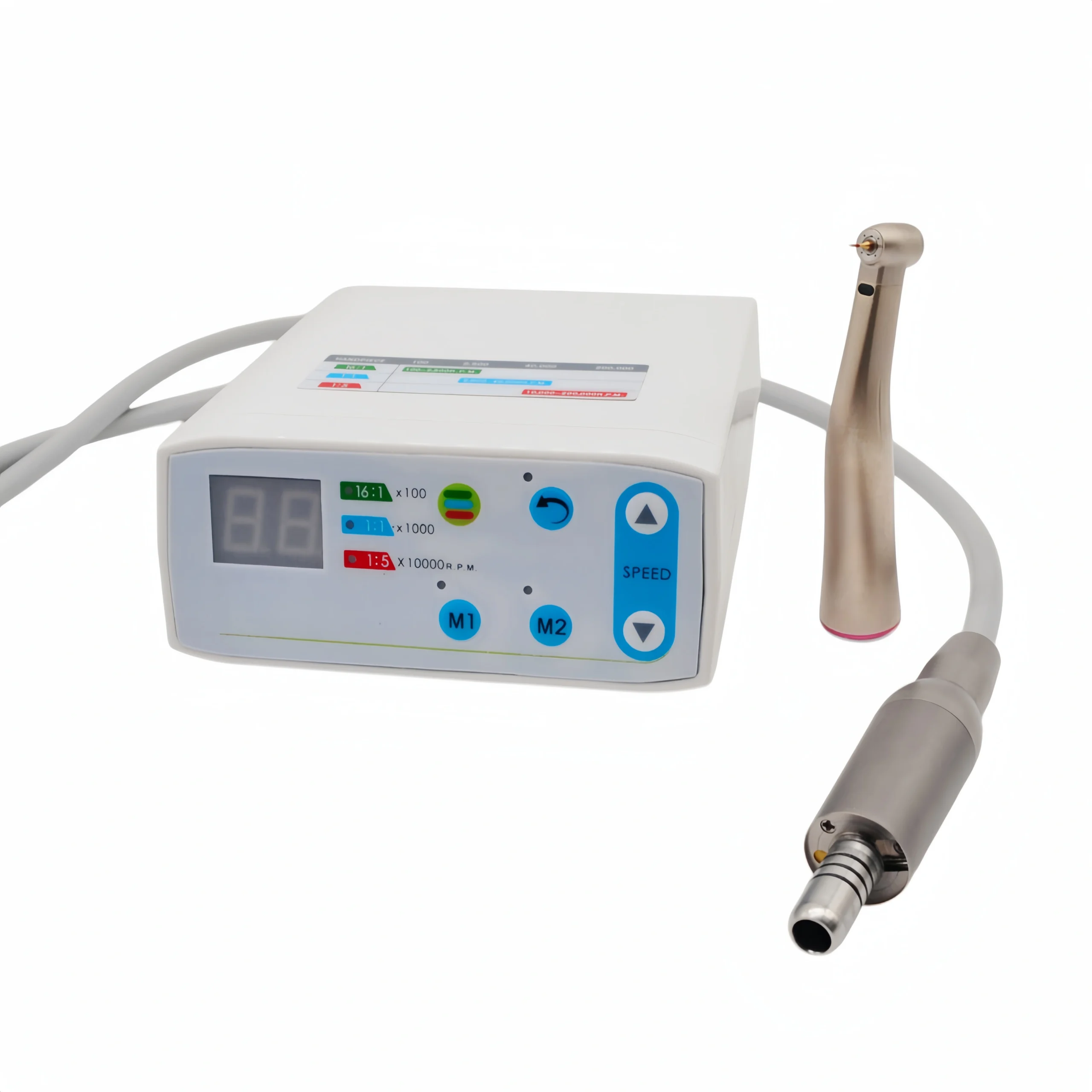

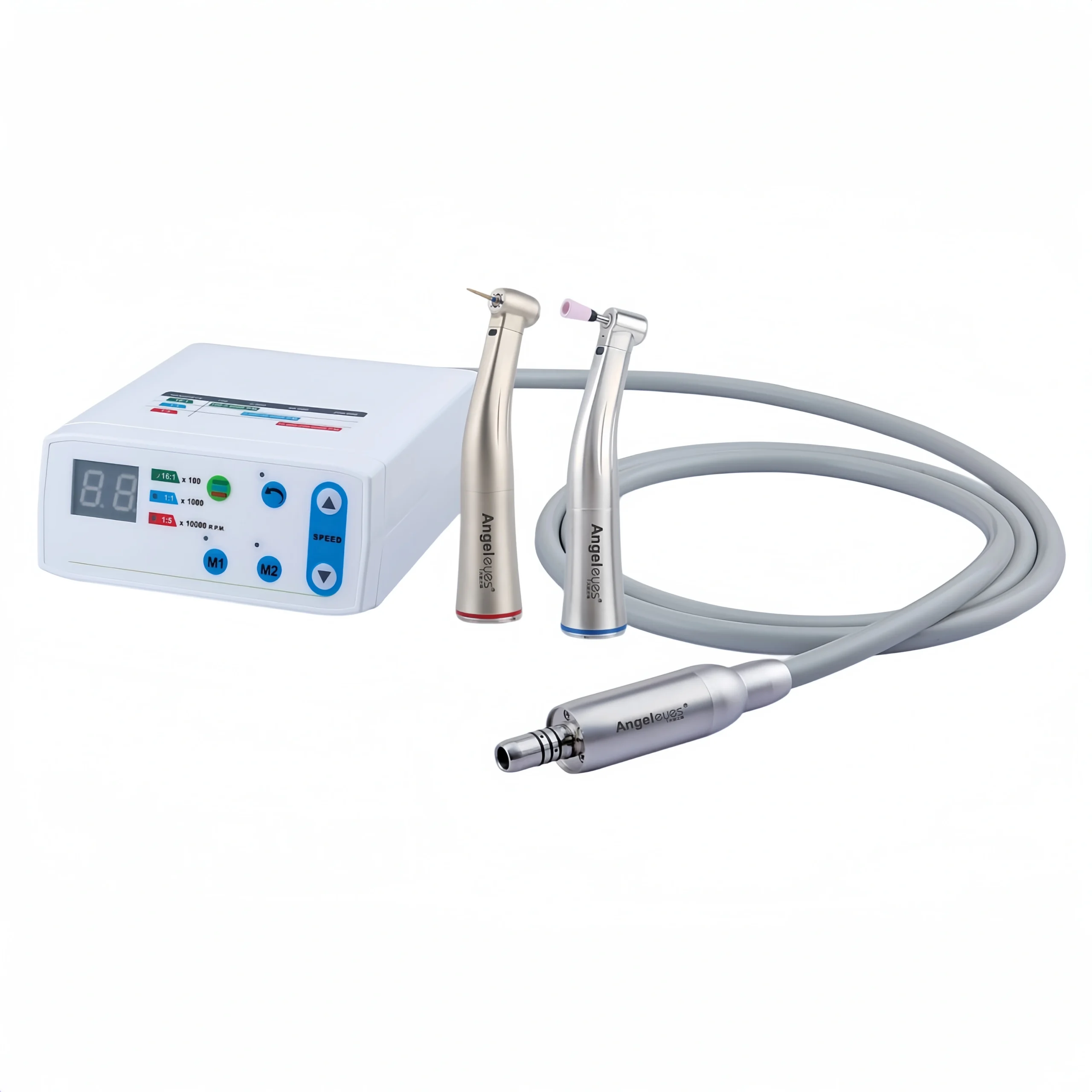

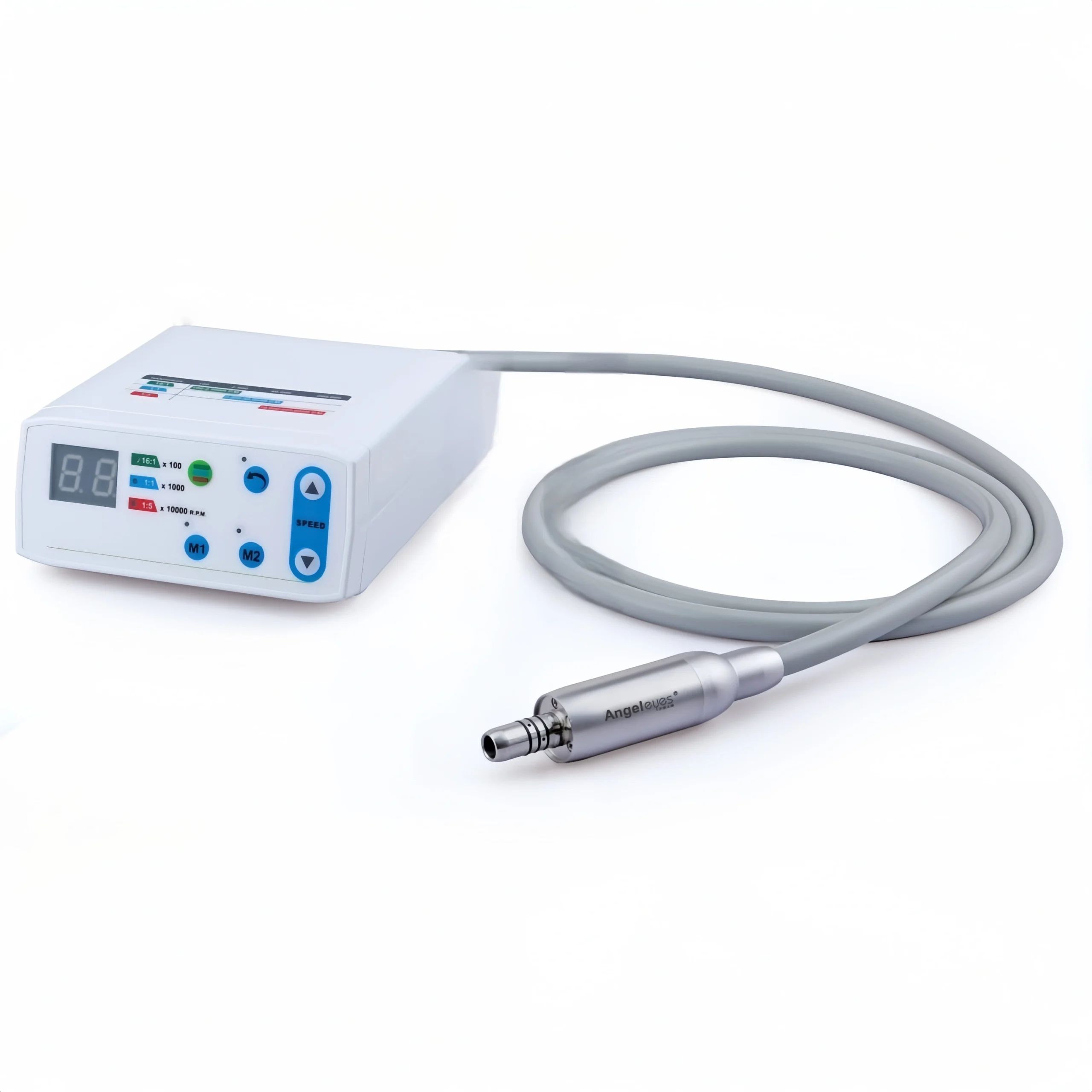

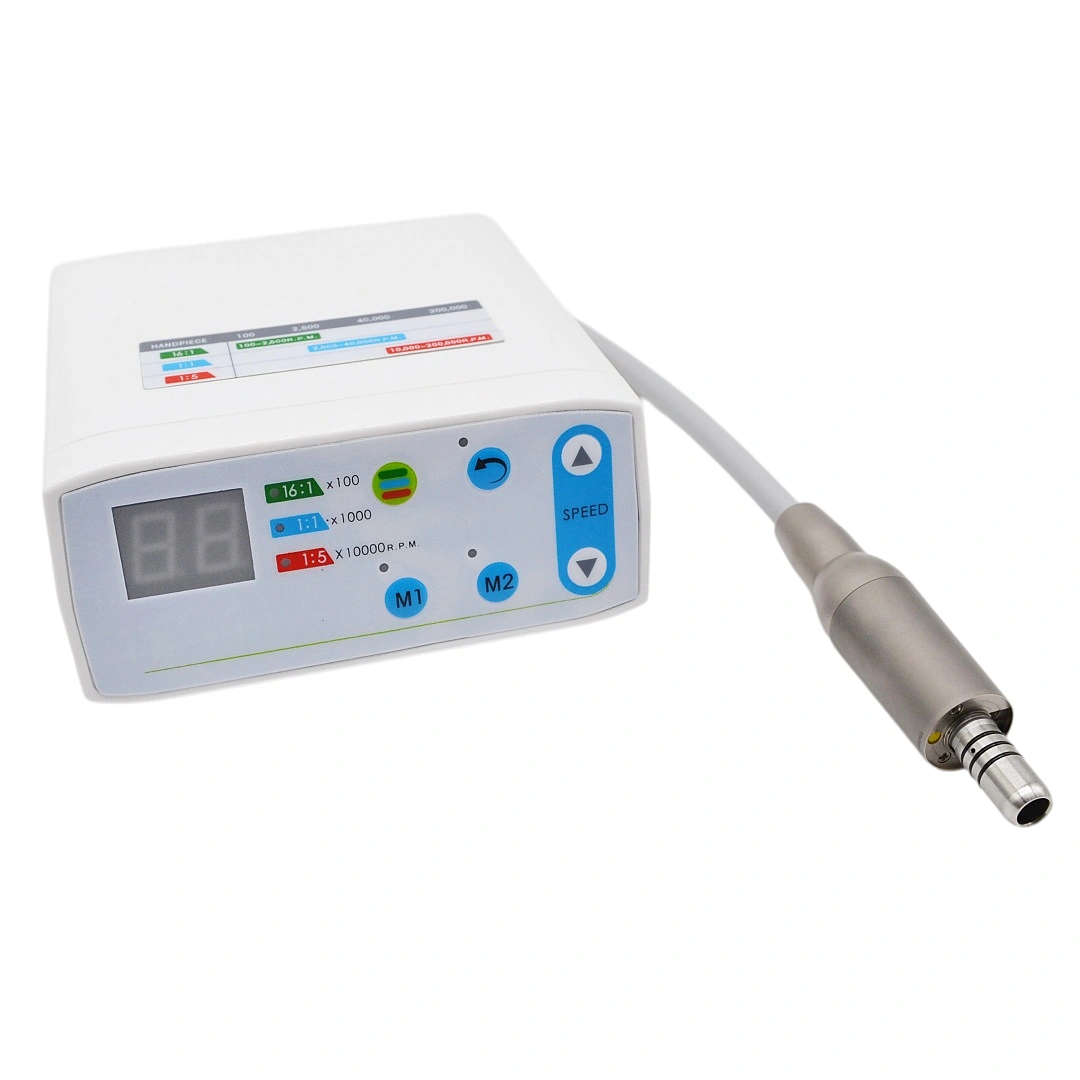

Brushless Electric Motor S120

Plastic body

Model: S120

Connector: M4/B2

Specification

Product Name	Brhshless electric motor
Model	S120
Operating Modes	Rotation speed 1:1,16:1,1:5
Torque	3.7Ncm
Spray	Internal spray
Motor Type	Brushless

Features

Low vibration, noise＜60dB, longer lifespan, stable continuous torque output without power drop during operation.

Overview

This Dental Brushless LED Electric Micro Motor is a high-performance, quiet dental drive system designed for modern dental clinics. Equipped with built-in LED illumination and internal water spray, it delivers stable torque and precise speed control for a full range of dental procedures, including crown preparation, restoration, polishing, endodontics and implant surgery. Supporting multiple gear ratios (1:1 /1:5 /16:1), it is compatible with fiber-optic low-speed handpieces. The digital control panel with speed memory function allows dentists to quickly switch preset working modes, greatly improving clinical efficiency. With low noise and long service life brushless motor structure, it is an ideal upgrade replacement for traditional air micromotors.

Technical Datasheet

Parameter	Specification
Model	S120
Product Name	Brushless Electric Motor
Charger Input	AC 110–240 V, 50/60 Hz
Noise	Less than 60db
Rotation speed 1:1	2,000-40,000rpm
Rotation speed 16:1	100-2500rpm
Rotation speed 1:5	10000-200,000rpm
Spray	Internal spray
Illumination	LED( white light)
Motor Type	Brushless

FAQ

1. What is the BS100 Dental LED Curing Light used for?

It is designed for curing compatible light-cured dental materials, including restorative composites and dental adhesives.

2. What is the light intensity of the BS100?

The light intensity ranges from 1,000 to 1,600 mW/cm².

3. How many operating modes are available?

The BS100 provides three modes: Strong, Flashing and Gradually Strong.

4. What curing times does the device support?

It supports curing times ranging from 5 to 40 seconds.

5. What is the curing depth?

The specified curing depth is up to 3 mm. Actual results may vary depending on the material, shade, exposure time and distance.

6. What is the diameter of the light guide?

The light guide has a diameter of 8 mm.

7. What charger voltage does the BS100 support?

The charger supports AC 110–240 V at 50/60 Hz, making it suitable for use in different international markets.
