Dental Interproximal Enamel Grinding IPR System

Optic light

Model: IPR system

Connector: ISO Stanard E type

Specification

Product Name	Dental Interproximal Enamel Grinding IPR System
Gear Ratio	4:1
Saw Blades Size	15/25/40/60/90HD Double Side
Power Source	Turbine, Electricity
Interface Type	E Type

Features

Interproximal Enamel Grinding / 1:4 reduction/ E-Type Connection

Overview

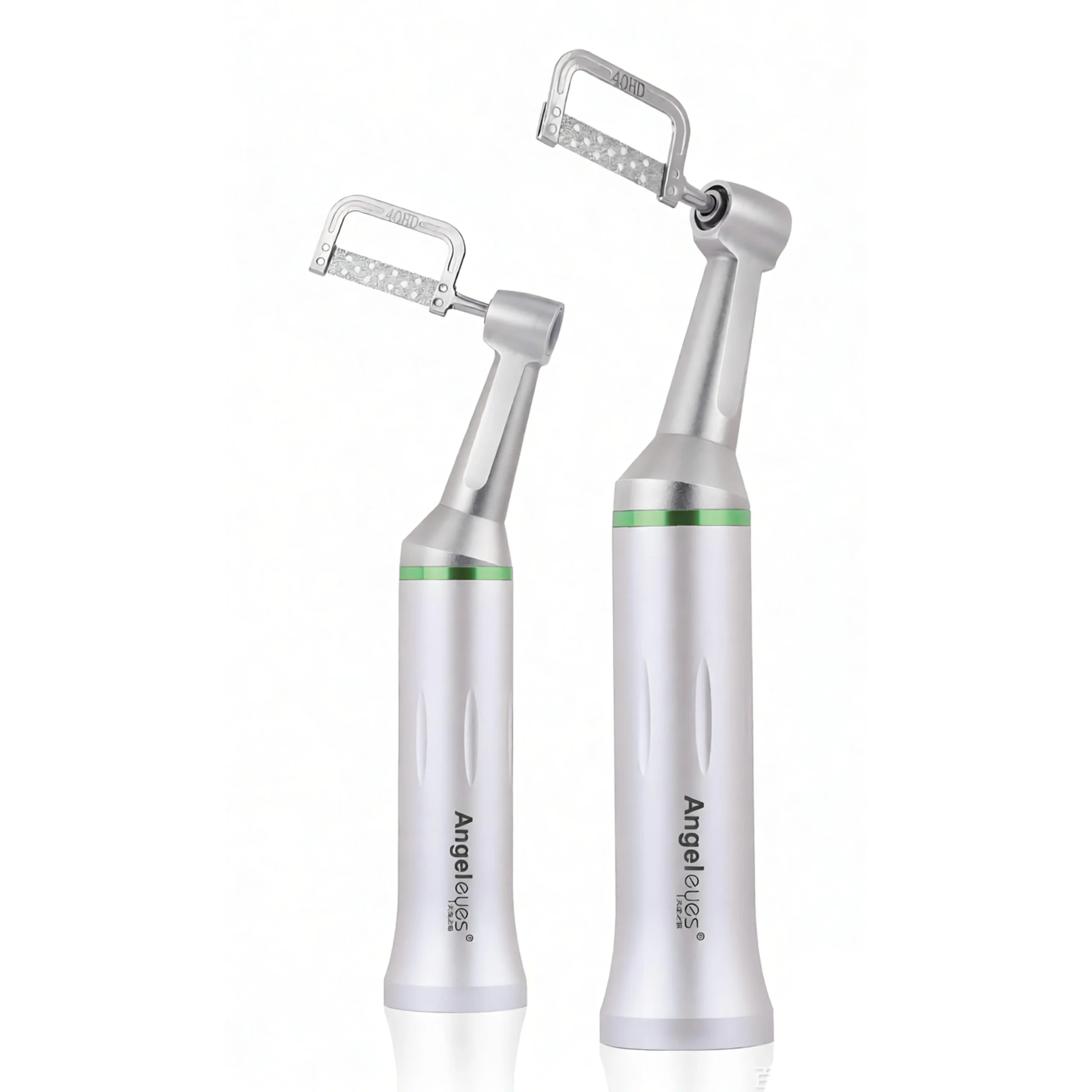

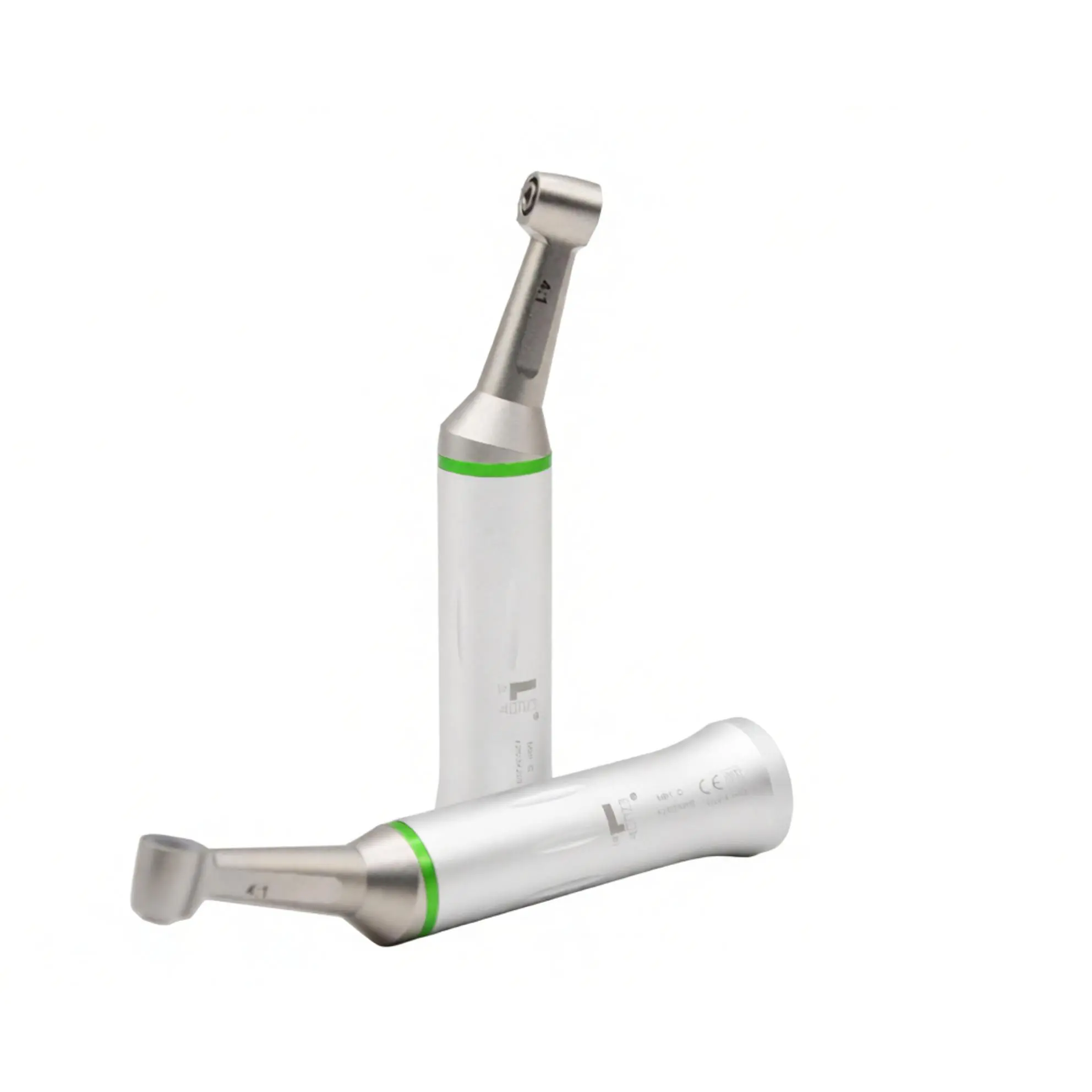

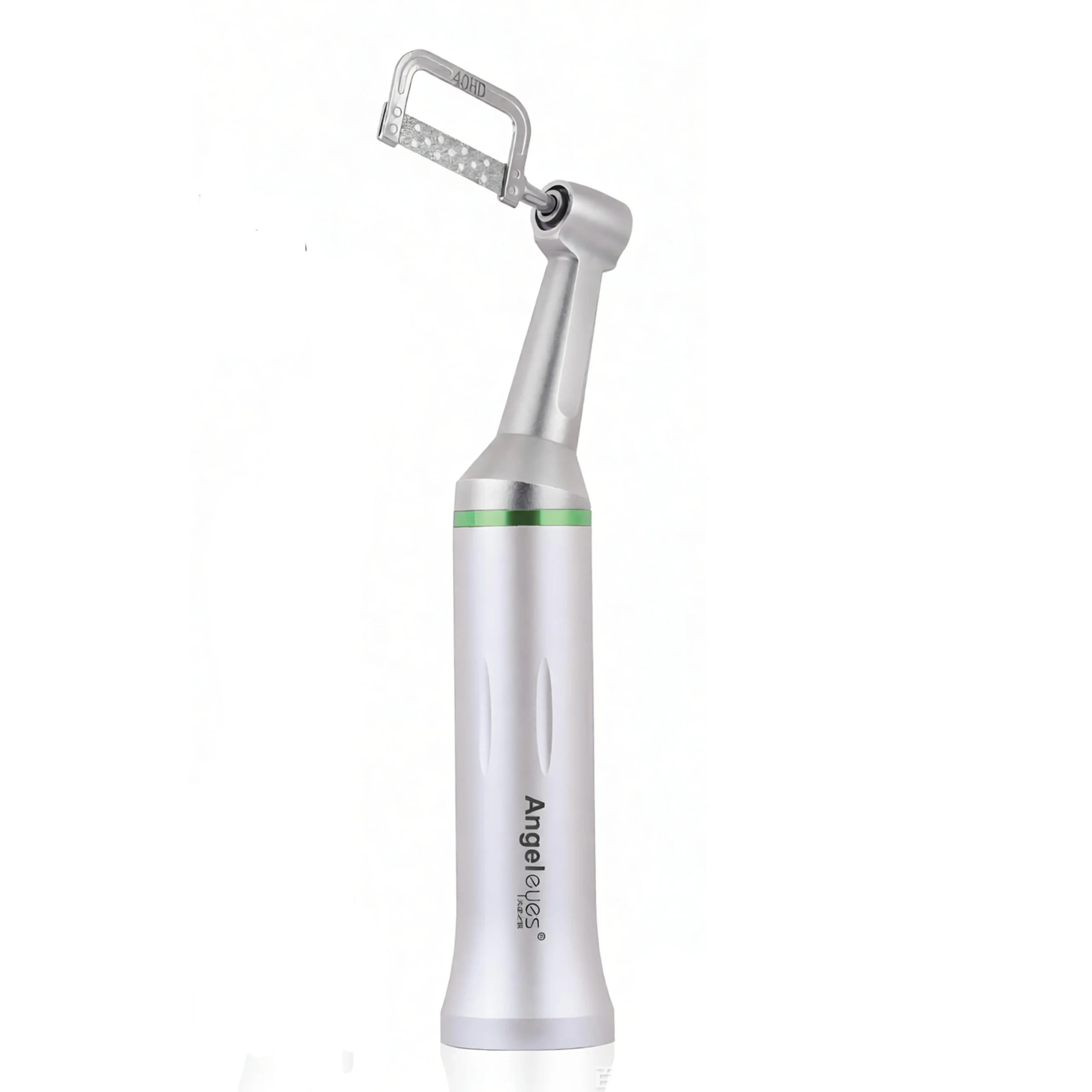

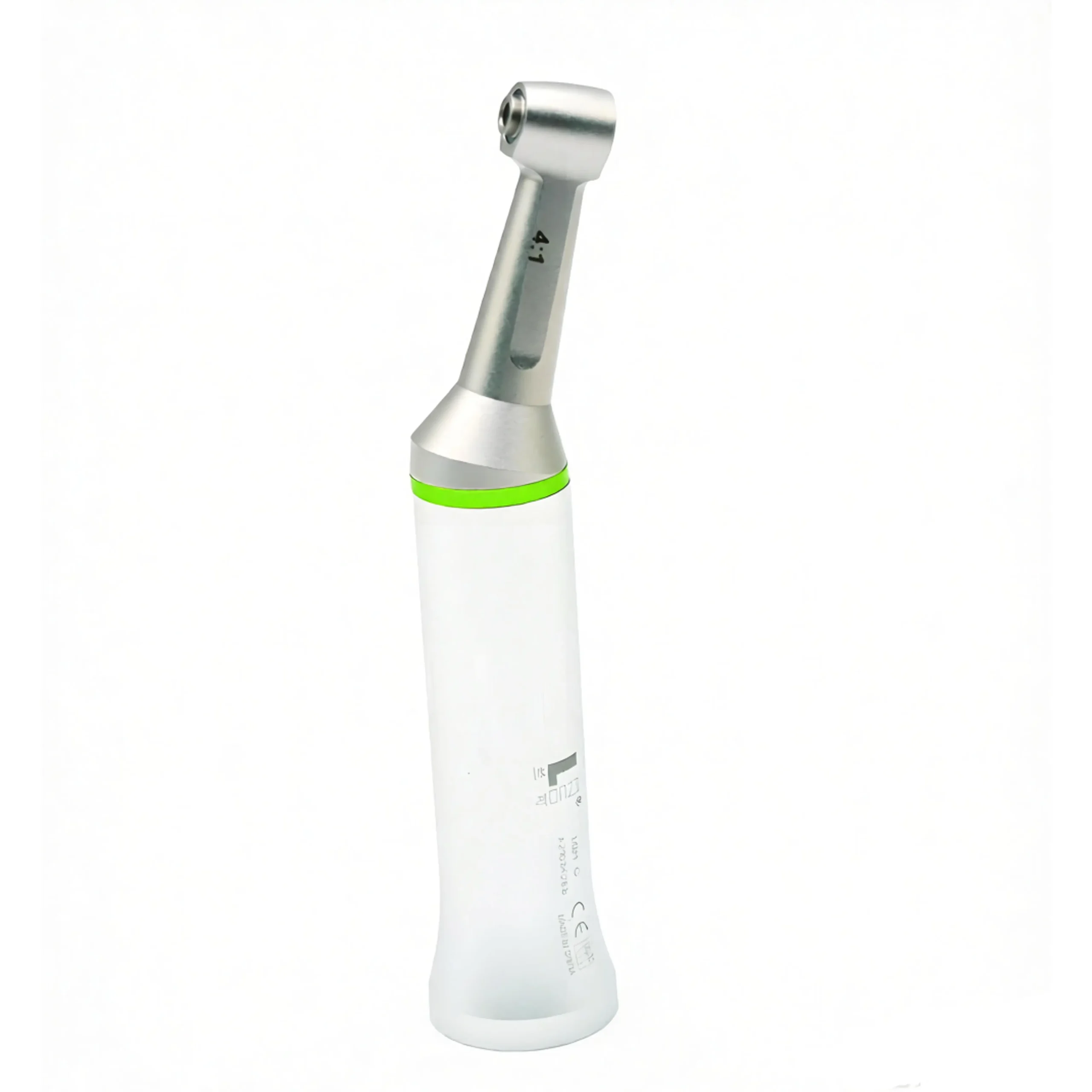

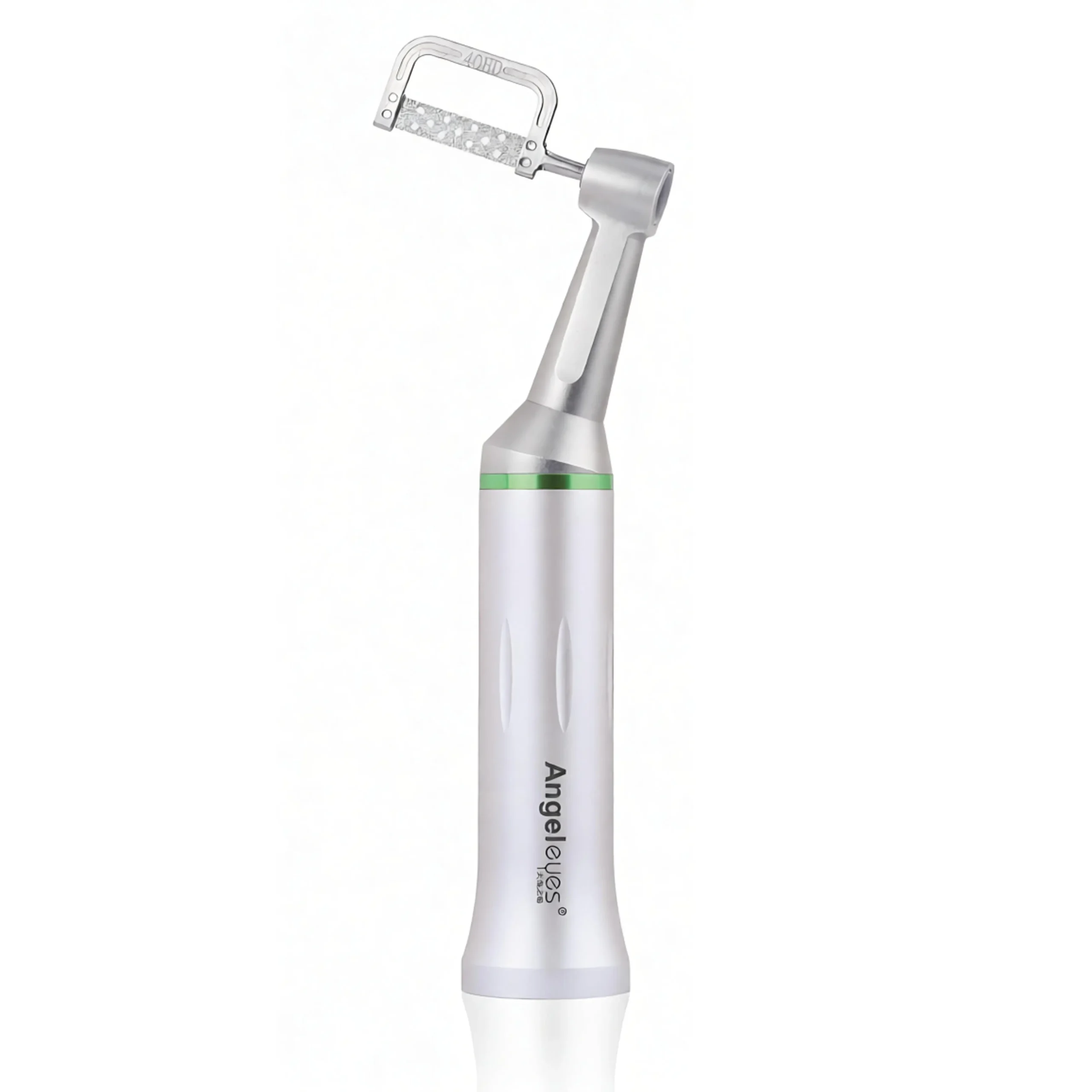

A safe, precise, and efficient solution for orthodontic interproximal enamel reduction. Made of durable stainless steel and designed for smooth, controlled stripping with multiple thickness options for different reduction needs. The ergonomic 4:1 reduction contra-angle handpiece provides a comfortable, secure grip, while the autoclavable design supports reliable clinical use. The complete set includes saw blades, stripping strips, handpiece, and storage case for convenient operation.

Technical Datasheet

Specification	Details
Product Name	Dental Interproximal Enamel Grinding IPR System
Gear Ratio	4:1
Saw Blades Size	15/25/40/60/90HD Double Side
Max Torque	60 Ncm
Air Pressure	0.3Mpa-0.35Mpa
Rotating Speed	15,000rpm
Power Source	Turbine, Electricity
Bearing	Ceramic
Interface Type	E Type

FAQ

1. What is the dental reduction strip system used for?
It is designed for orthodontic interproximal enamel reduction (IPR), helping dentists safely and precisely reduce enamel between teeth.

2. What materials are the strips and saw blades made of?
The strips and saw blades are made of high-quality stainless steel, offering high hardness, corrosion resistance, and good durability.

3. What thickness options are available?
The system provides multiple thicknesses, including 15/25/40/60/90HD, covering different enamel reduction requirements.

4. Does the set include a handpiece?

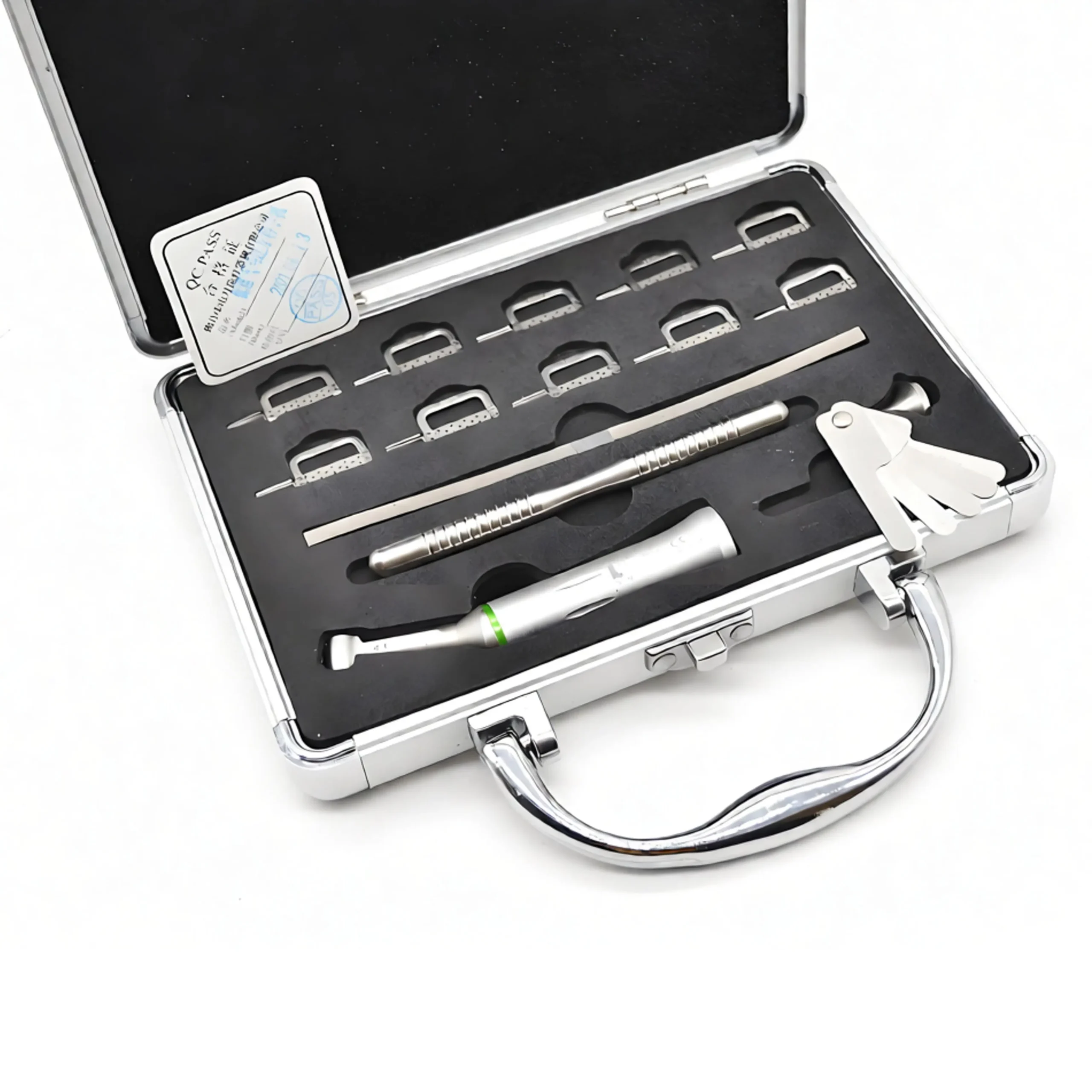

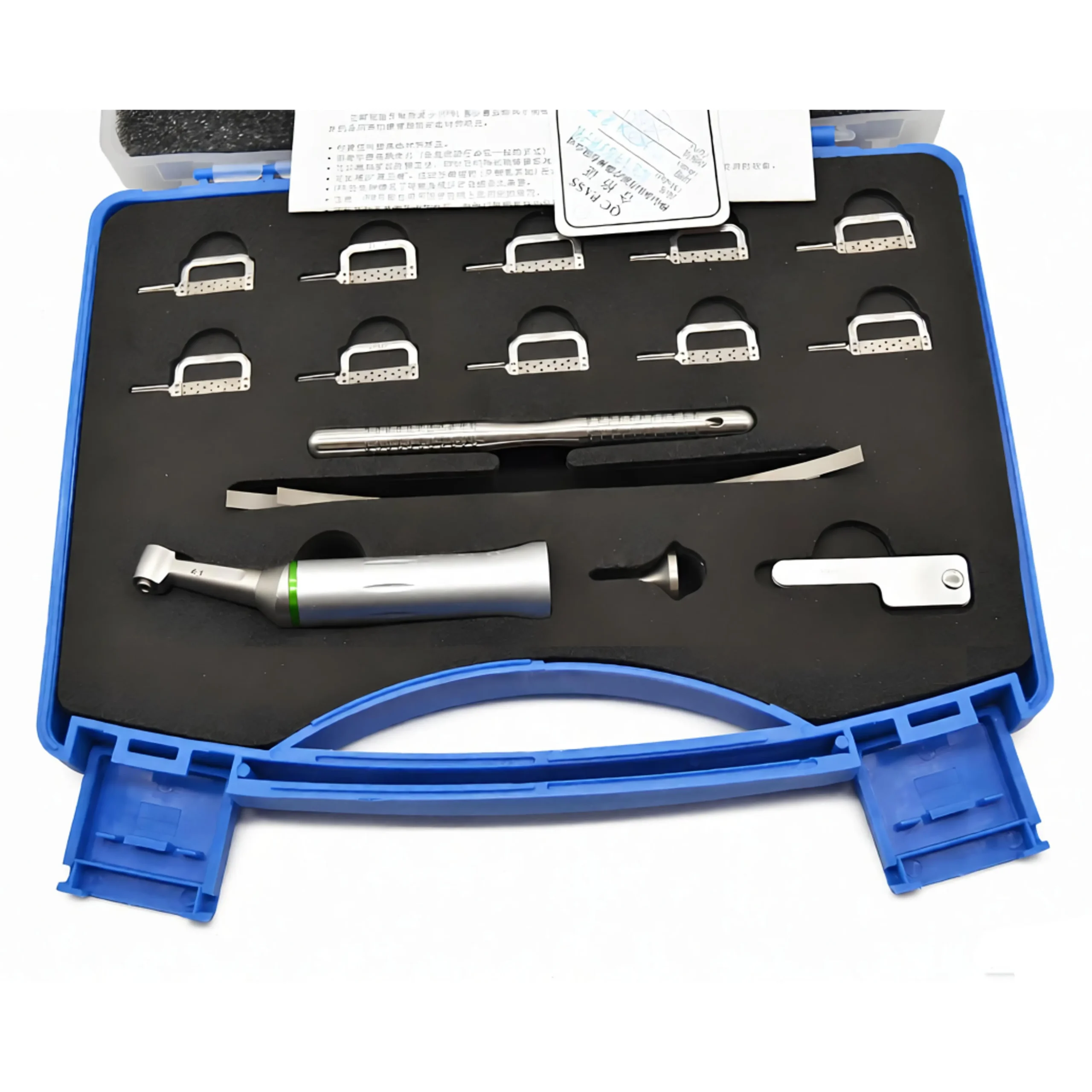

Yes. The complete set includes

Contra Angle *1 pc
IPR strips *10 pcs
Remove tool *1 pc
Gap Measuring Ruler *1 set
Polishing strips *2 pcs
Manual handle *1 pc,

providing a convenient all-in-one solution.

5. Is the dental reduction strip system autoclavable?
Yes. The components are designed to withstand repeated sterilization, making them suitable for regular clinical dental use.

6. What are the advantages of the polished edges?
The finely polished edges provide smooth cutting with fewer burrs, helping achieve a more even tooth surface and improving patient comfort during enamel reduction.

7. Is the handpiece comfortable to use?
Yes. The handpiece features an ergonomic, non-slip design that fits the natural curve of the hand, providing a secure and comfortable grip during operation.
